paper core making and paper core cutting machine from China manufacturer - Ruian Huida Machinery Manufacture Co., Ltd.

paper core making and paper core cutting machine

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Delivery Date: 20 days after received the ...

Certification: CE

Packing: export wooden case

Product Type: Paper Core Machine

Processing Type: Others

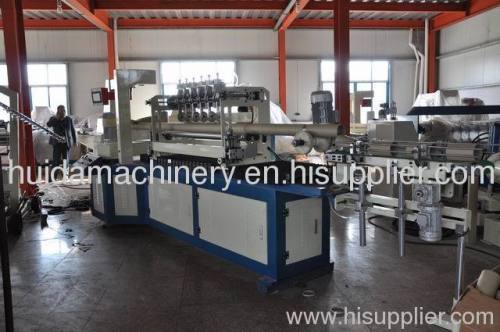

this machine is mainly to produce the different size paper cores and can cut them on the same machine, it is the combined paper core mahcine.

Technical specification
Paper roll layer	3-8 plies
Diameter	30-160mm
Thickness	0.5-5mm
way of fixing shaft	Flange
Operator	1-2
Way of cutting	8 blades
Way of gluing	Double sides
way of fixing length	Infrared/encoder
Speed	3-20m/min;
Rolling nose	Double noses with one belt
Speed regulation control	Inverter
Cutting precision	0.1-0.2mm
Min-length	80mm

Feature:

1. With mutil-blade cutting device, can able to make shorter tubes.

2.Colors detection device that can be detected precise cutting location on label tubes.

3.Adopted Aluminium foil sealing device and shaft cooling device are perfect for making composite cans.

4.cutting table is formed by precise ball screw and high performance servo motor drive, can working synchronism with tube.

5.Main motor is adopt vector type of high torque inverter for speed regulate ,electronic gear from second gears ,and endless speed regulation from first gears.

6.Adopted PLC digital control system, and color touch screen man-machine interface.

7.Encoder for testing length so as to ensured high cutting precision at different speed.

8.Modularization electric layout designing for easy and scientific using\maintaining and repairing.

9.With multi-function bottom ply device and auto stopping when paper be cut off

10.Low noise driving designing

11.Integration linkage device of integral paper reel stand, glue stand ,guiding paper which be adjust by power-driven.
